InfoPath 2013 - SharePoint integration issues

In #InfoPath2010 there is a couple of known issues when you try to integrate with #SharePoint Form Library:

1. Unable to submit Person or Group column values directly from the form
2. Unable to submit Choice column values that are multi-choice (checkbox list)

In #InfoPath2013 it's the same situation.

Example.

We would like to create a Form Template to use with Form Library in #SharePoint2013 site:


Form Library should have the following structure:


 Trying to publish:




Trying to submit the value from the People Picker on the form to the Requestor (Person or Group) column:

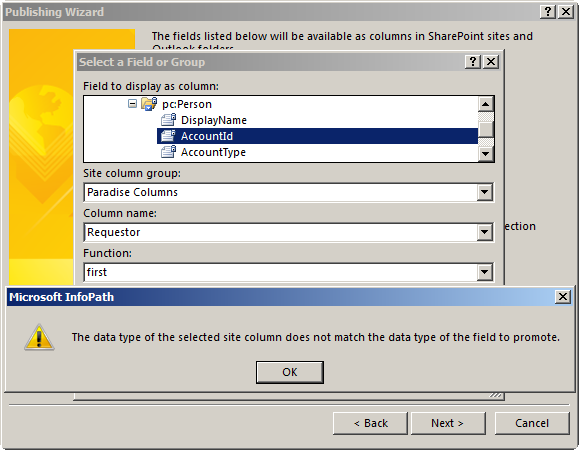

and getting an error "The data type of the selected site column does not match the data type of the field to promote":


Trying other option - DisplayName, same result:


Same with Travel Options (Multi-choice) column:


No-code solution in this case could be using Custom List instead of Form Library:


 and customize the list form in #InfoPath2013:


and publish:
